Understanding Wi-Fi is a critical skill in networking and cybersecurity. As a professional, you'll need to configure secure wireless networks, troubleshoot connection issues, and understand how attackers can exploit weak Wi-Fi. This room will give you the foundational knowledge you need.

What You Will Learn

In this room, you will learn:

• What Wi-Fi is and how it uses radio waves to create a network.
• The different Wi-Fi standards (like Wi-Fi 5, Wi-Fi 6) and frequency bands (2.4 GHz vs. 5 GHz).
• The essential security protocols (WPA2, WPA3) and why choosing the right one is crucial.

How to Approach This Room

This is a beginner-friendly room. We'll use simple analogies and clear explanations. Don't worry if some terms are new; we'll build up concepts step-by-step. Your goal is to understand the core ideas, not memorize complex technical specifications.

Optional Video

This optional video covers the fundamental concepts of Wi-Fi, including standards, bands, and security. It's helpful but not required to complete the room.

Understanding Wireless Networking

Wi-Fi is a technology that allows devices like laptops, smartphones, and tablets to connect to a network and the internet without physical cables. Instead of electrical signals traveling through a wire, Wi-Fi uses radio waves, the same type of invisible waves used by radios, cell phones, and microwaves to transmit data through the air.

Think of it like this: your router is a radio station broadcasting a signal, and your device is a radio tuned to that station to listen and talk back. This two-way conversation of data packets is what creates your wireless network.

Key Components of a Wi-Fi Network

• Access Point (AP) / Router: This is the central hub. It creates the Wi-Fi network by broadcasting radio signals and manages communication between all connected wireless devices and your wired internet connection.
• Wireless Client: This is any device that connects to the Wi-Fi network, such as your phone, laptop, or smart TV. It has a wireless network adapter to send and receive radio signals.

Finding and Joining a Network

When you turn on Wi-Fi on your phone, you see a list of available networks. Each network has two key identifiers you need to know:

1. SSID (Service Set Identifier): This is simply the name of the Wi-Fi network you see in the list (e.g., "HomeNetwork," "CoffeeShop_Guest").
2. Frequency Band: This is the "channel" or radio frequency the network uses. The two main bands are:
   • 2.4 Gigahertz (GHz): Longer range but slower speeds and more prone to interference.
   • 5 Gigahertz (GHz): Shorter range but much faster speeds and less interference.

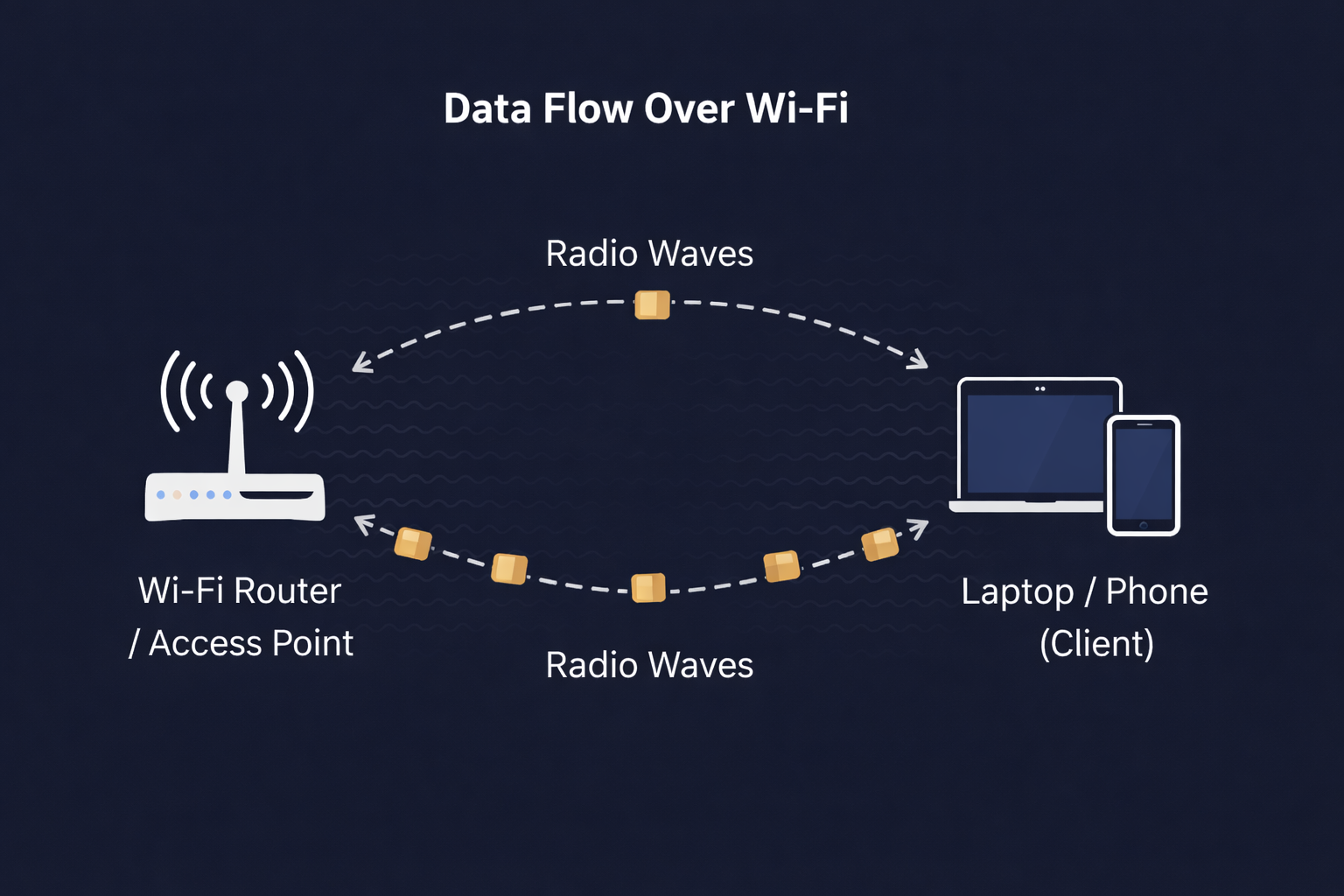

Below is a visual demonstration of how data travels in a Wi-Fi network:

Connecting at Home

Imagine you walk into your living room with your phone. You turn on Wi-Fi, see your home network's SSID (e.g., "Smith Family WiFi"), and tap to connect. Your phone (the client) sends a request via radio waves to your router. The router verifies your password and allows the connection. Now, when you load a webpage, that request is converted into radio signals, sent to the router, which fetches the data from the internet, and sends it back to your phone, all wirelessly.

Understanding WiFi Standards

WiFi isn't just one technology; it has evolved over decades to become faster and more reliable. These improvements are defined by IEEE 802.11 standards, each given a new letter (like 802.11n) and, more recently, a simpler generational name (like Wi-Fi 5).

Think of standards like different models of cars. A newer model (like Wi-Fi 6) has better features, more horsepower (speed), and is more efficient than an older model (like Wi-Fi 4). Here are the key standards you should know:

• Wi-Fi 4 (802.11n): Introduced the use of both 2.4 GHz and 5 GHz bands. A major step forward in speed and reliability.
• Wi-Fi 5 (802.11ac): Operated only on the 5 GHz band and brought significantly faster maximum speeds, perfect for streaming and gaming.
• Wi-Fi 6 (802.11ax): The current modern standard. It improves speed, efficiency, and performance in crowded areas with many devices.

Below is a visual demonstration of how key Wi-Fi standards have evolved:

The Two Main Highways: 2.4 GHz vs. 5 GHz

Your Wi-Fi router can broadcast its signal on two different "frequency bands," which are like two separate highways for your data:

Feature	2.4 GHz Band	5 GHz Band
Range	Longer range. Better at going through walls and over distances.	Shorter range. More easily blocked by walls and obstacles.
Speed	Slower maximum speed. The "highway" has fewer lanes and more traffic.	Faster maximum speed. The "highway" has more lanes and is wider.
Interference	High interference. Many devices use this band (microwaves, Bluetooth, baby monitors), causing traffic jams.	Low interference. Fewer common devices use this band, leading to a clearer signal.
Best For	Covering large homes, connecting devices far from the router, or for simple tasks like email.	Streaming HD video, online gaming, and fast file transfers when you are closer to the router.

Choosing the Right Band

You are trying to video call your friend from your backyard, which is quite far from your router. The 2.4 GHz band, with its longer range, would likely provide a more stable connection, even if the video quality isn't perfect. Conversely, if you are in the same room as the router downloading a large game update, connecting to the 5 GHz band would give you the fastest possible speed.

Wi-Fi Security is Non-Negotiable

Leaving your Wi-Fi network unprotected is like leaving the front door of your house wide open with a sign saying "Come on in and rob the house!" Because radio waves travel through the air, anyone within range could potentially listen in on the data sent between your devices and router. Security protocols act as a powerful lock and encryption system for your wireless "door."

Over time, these locks have been improved as older ones were found to be weak and breakable. Let's walk through the evolution.

The Evolution of Wi-Fi Security: From Broken to Secure

Wi-Fi security has evolved through several main protocols. It's crucial to know which are safe to use and which are dangerously obsolete.

Protocol	Full Name	Status & Key Point
WEP	Wired Equivalent Privacy	INSECURE & BROKEN. The original security from 1997. It can be cracked in minutes with simple tools. Never use it.
WPA	Wi-Fi Protected Access	OBSOLETE. Created as a temporary fix for WEP's flaws. It's better than WEP but is now considered weak and should not be used.
WPA2	Wi-Fi Protected Access 2	STRONG & RECOMMENDED. The current security standard for over a decade. It uses strong encryption (AES) and is considered secure for all home and business use.
WPA3	Wi-Fi Protected Access 3	NEWEST & STRONGEST. The latest standard, introduced in 2018. It provides even stronger protections, especially for weak passwords. Use it if your devices support it.

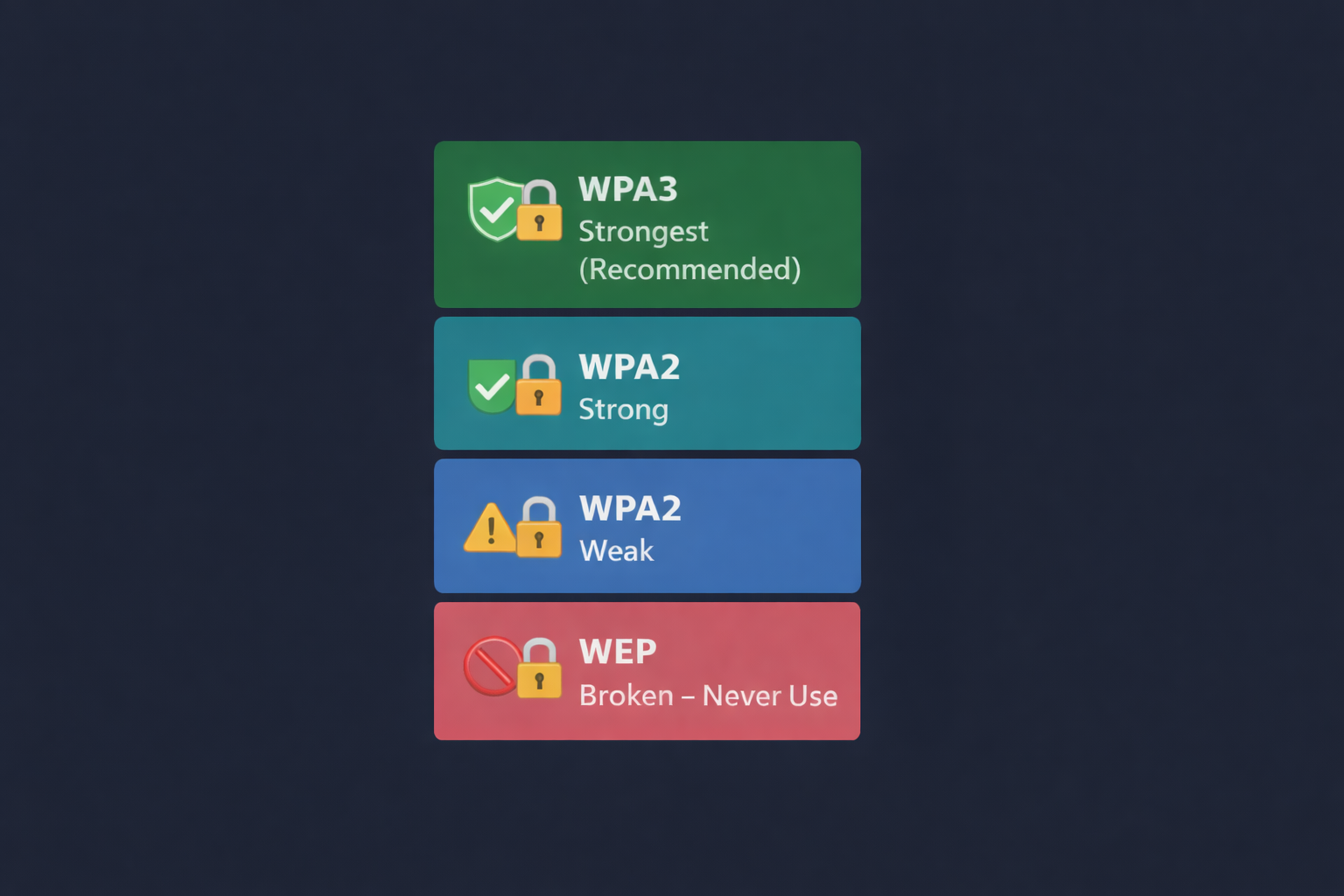

Below is a visual demonstration of the progression in Wi-Fi security strength:

Configuring Your Router

You've just bought a new Wi-Fi router. As you go through the setup wizard on your computer, you reach the security settings. You see a dropdown menu with the following options: WEP, WPA, WPA2, and WPA3.

Based on what you've learned:

1. You immediately avoid WEP (it's completely broken) and WPA (it's outdated and weak).
2. You see that WPA3 is available. This is the best, most secure choice, so you select it.
3. If WPA3 weren't available, you would confidently select WPA2, knowing it is a strong and recommended standard for keeping your network safe.

Congratulations! You've built a strong foundation in how wireless networks operate, moving beyond the world of cables into the invisible realm of radio waves.

What You've Learned

Let's recap the key takeaways from this room:

• Wi-Fi Basics: Wi-Fi uses radio waves to transmit data wirelessly between devices (clients) and a central router or access point.
• Finding Networks: You identify a network by its SSID (name) and it broadcasts on specific frequency bands (2.4 GHz or 5 GHz).
• Standards & Bands: Newer Wi-Fi standards (like Wi-Fi 6) offer better performance. The 2.4 GHz band provides longer range but is slower and prone to interference, while the 5 GHz band offers faster speeds over a shorter distance.
• Critical Security: Wi-Fi security is essential. You must understand the evolution from broken WEP, to outdated WPA, to the strong and recommended WPA2, and finally to the newest WPA3.
