Have you ever wondered how your computer knows whether incoming data is for your web browser, email client, or online game? This room will teach you about ports, the invisible "doors" that direct network traffic to the right applications on your device. Understanding ports is essential for anyone working with networks, whether you're troubleshooting connection issues or setting up servers.

In this room, you'll learn how ports work with IP addresses to ensure data reaches the correct destination. We'll explore common port numbers you encounter every day, understand how connections are established, and learn practical skills for checking which ports are open on your system. By the end, you'll have a solid foundation in one of networking's most important concepts.

Learning Objectives:

• Understand what ports are and why they're essential in networking
• Memorize common port numbers for everyday services
• Learn how ports work with IP addresses to direct traffic
• Practice checking open ports and troubleshooting connections
• Apply port knowledge to real-world networking scenarios

Prerequisites:

• Basic understanding of IP addresses (from previous rooms)
• Knowledge of what protocols are (from previous rooms)
• Familiarity with client-server communication concept
• Understanding of basic network devices (router, switch)

How to Approach This Room:

Take your time with each task. The visual demonstrations will help make abstract concepts concrete. Try to relate each concept to your own experience, think about when you've had connection issues or set up a game server. The questions are designed to reinforce learning, not test memorization.

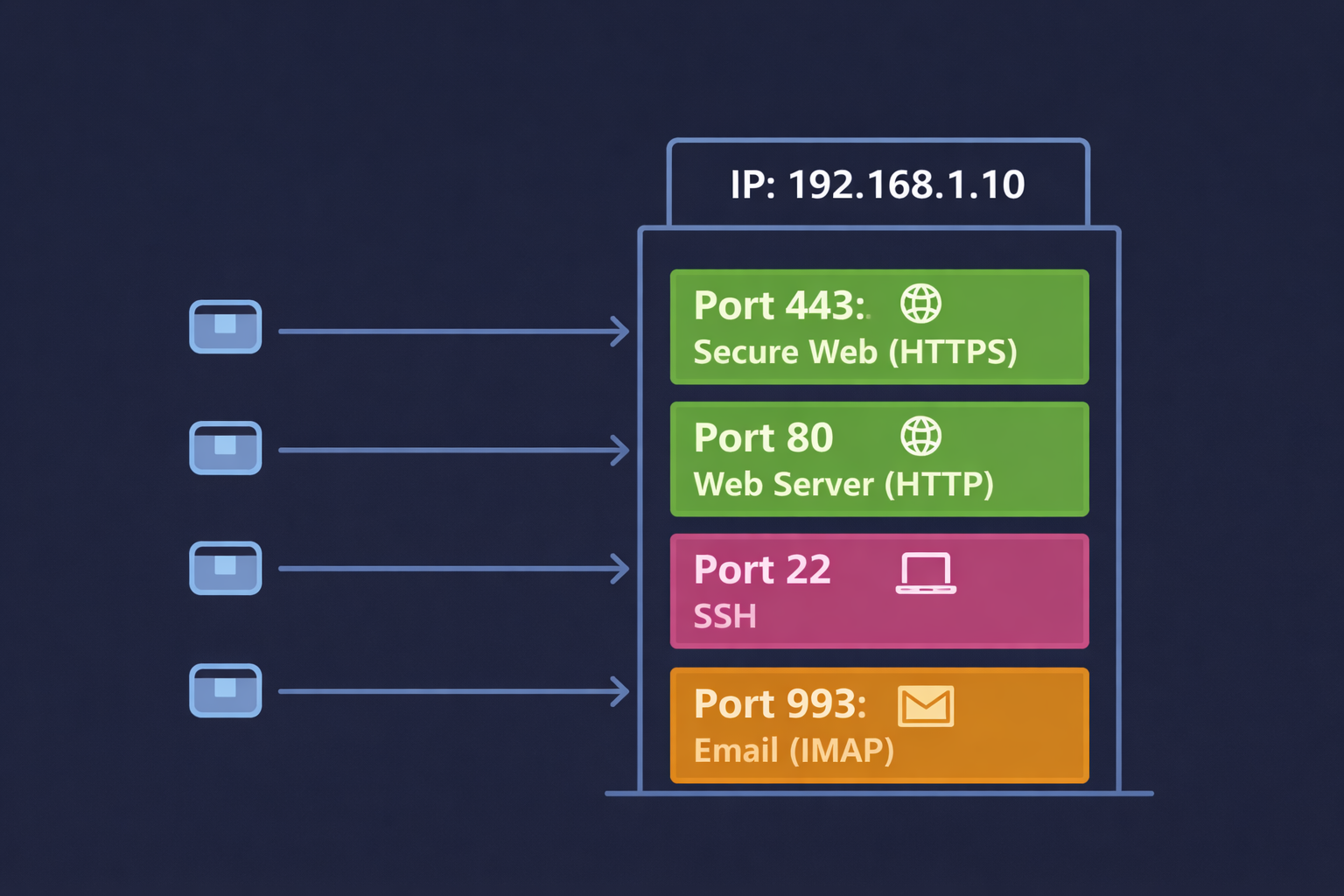

Ports are logical endpoints on a computer that allow multiple applications to use the network simultaneously. Think of your computer's IP address as the street address of an apartment building, and ports as the apartment numbers inside. Just as mail needs both a building address AND an apartment number to reach the right person, network data needs both an IP address AND a port number to reach the correct application.

Port numbers range from 0 to 65535 and are divided into three categories:

• Well-known ports (0-1023): Reserved for system services (HTTP, SSH, DNS)
• Registered ports (1024-49151): Assigned to user applications
• Dynamic/Ephemeral ports (49152-65535): Temporarily assigned to client applications

Every network connection uses two ports: one on the client computer and one on the server computer. This pairing ensures data can travel both directions reliably.

Port Categories

Category	Port Range	Purpose	Examples
Well-known	0-1023	System services	80 (HTTP), 443 (HTTPS), 22 (SSH)
Registered	1024-49151	User applications	3306 (MySQL), 27017 (MongoDB)
Dynamic	49152-65535	Temporary client ports	Randomly assigned by OS

Real-World Example

When you visit a website, your browser connects to the server's port 80 (HTTP) or 443 (HTTPS). Meanwhile, your computer assigns a random dynamic port (like 54321) for the response to come back to. This is why you can have multiple browser tabs open simultaneously, each gets its own temporary port.

Certain port numbers are so commonly used that every network professional should know them. These "well-known ports" are standardized so that devices worldwide can communicate without confusion. For example, web servers always use port 80 for HTTP and port 443 for HTTPS, this consistency makes the internet work reliably.

Here's a memory trick: Ports in the 20s are often for file transfer, ports in the 50s for name resolution, and ports 80/443 for web traffic. While you don't need to memorize all 65535 ports, knowing the common ones will help you troubleshoot problems and configure services correctly.

Common Port Numbers

Port	Protocol	Service	Description
20/21	FTP	File Transfer	File transfer (data/control)
22	SSH	Secure Shell	Secure remote access
23	Telnet	Telnet	Unsecure remote access (avoid)
25	SMTP	Simple Mail Transfer	Email sending
53	DNS	Domain Name System	Converts names to IPs
80	HTTP	Hypertext Transfer	Regular web traffic
110	POP3	Post Office Protocol	Email retrieval
143	IMAP	Internet Message Access	Email retrieval (modern)
443	HTTPS	HTTP Secure	Encrypted web traffic
3389	RDP	Remote Desktop	Windows remote access

Practical Scenario

You're setting up a home web server. You need to open port 443 for HTTPS websites. Should you also open port 22 for remote administration? Yes, but only with strong security. Should you open port 23 for Telnet? Never, it's insecure. Should you open port 80 for HTTP? Only if you want to redirect to HTTPS (port 443).

Now that you know what ports are and which numbers are important, let's see how they actually work in a connection. When your computer connects to a server, it needs to establish a two-way communication channel. This involves four key pieces of information: client IP, client port, server IP, and server port. Together, these create a unique "socket" for each connection.

Here's the step-by-step process when you visit a website:

1. Your browser picks a random ephemeral port (e.g., 54321)
2. It sends a request to the server's IP address on port 443 (HTTPS)
3. The server receives the request and processes it
4. The server sends the response back to your IP address on port 54321
5. Your browser receives the response on that specific port

This is why you can have multiple connections open simultaneously, each gets its own unique client port.

Common Port States

State	Description	What It Means
LISTENING	Port is open and waiting for connections	Service is running and available
ESTABLISHED	Active connection exists	Data is flowing between client and server
TIME_WAIT	Connection is closing	Brief period before port can be reused
CLOSE_WAIT	Remote side closed connection	Local application should close its end

Checking Your Ports

On most operating systems, you can check which ports are in use:

• Windows: netstat -an in Command Prompt
• Linux/Mac: ss -tuln or netstat -tuln in Terminal

This shows you what's LISTENING (waiting for connections) and ESTABLISHED (active connections).

Troubleshooting Scenario

Your favorite online game won't connect. You check the game's documentation and find it needs port 7777 open. You check your computer (netstat -an) and don't see port 7777 LISTENING, this means the game service isn't running. After starting the game, you see port 7777 LISTENING, but connections still fail. The problem might be your router's firewall blocking port 7777.

Congratulations! You've completed this room! You now understand one of the core concepts that makes modern networking possible. Ports are the invisible traffic directors that ensure data reaches the right applications, and you've learned how they work with IP addresses to create reliable connections.

Remember that this knowledge isn't just theoretical, you can apply it immediately. Whether you're troubleshooting why a game won't connect, setting up a web server, or just curious about how your computer manages multiple internet connections simultaneously, you now have the foundational understanding to figure it out.

Key Takeaways:

• Ports are logical endpoints (0-65535) that work with IP addresses to direct traffic
• Well known ports (0-1023) are standardized for common services (HTTP=80, HTTPS=443, SSH=22, DNS=53)
• Connections use two ports: a fixed server port and a temporary client (ephemeral) port
• You can check port states using commands like netstat or ss to troubleshoot connections
• Security is crucial, never leave unnecessary ports open on public servers

Practical Applications:

• Troubleshooting application connection issues
• Configuring firewalls and routers
• Setting up servers with proper port configurations
• Understanding network service requirements
• Recognizing potential security issues in port configurations
